| Model | Fog control system |
|---|---|
| Manufacturer | Green Nuri Co., Ltd |

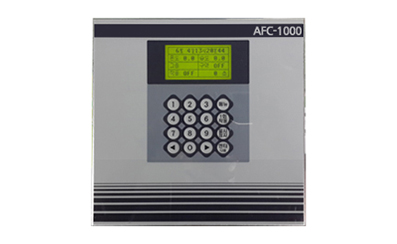

| Controller | Microprocessor (automatic control depending on the setting by user) |
| Analog Input | 온도센서 2개소, 습도센서2개소(미니백엽상) |
| Digital output | 15개소 (에어펌프1, 급수펌프1, 솔밸브12, 알람1) |
| Power source | AC220V / 60Hz |
| Method of control |
•Temperature control : It works when internal temperature exceeds the |
|---|---|
| •Humidity control : It works when internal humidity exceeds the setting humidity value | |
| •Temperature/humidity control : It works when internal temp./humidity exceeds the setting temp./humidity values | |
| •Periodical control : It works periodically without temp./humidity sensor | |
| Features of software |
•4 groups can be set up |
| •Function of each group can be set separately | |
| •Valves up to 6 groups can be set up | |
| •4 programs can be operated (①temperature, ②humidity, ③temp./humidity, ④periodical control) | |
| •Over-humidity prevention program is applicable for the temperature setting | |
| •Waterdrop prevention, air delay time can be set up | |
| •PC program for the data log can be stored for 365 days (data storage per minute, option) |
|
| Features of air fog |
•Venturi type of low-pressure spray nozzle |
| •Mist spraying by means of compressed air | |
| •Highly effective low pressure spray | |
| •Particle size, volume of water can be adjustable | |
| •Nozzle won't be clogged | |
| •Maximum range of spraying is 8 meters | |
| •Very easy to install | |
| Application of air fog |
•Greenhouse & mushroom cultivation house : Temperature drop, humidification, application of nutrients |
| •Livestock : Temperature drop, humidification, application of pesticide, reduction of dusts, elimination of bad odor | |
| •Industry : Temperature drop, humidification, reduction of dusts, elimination of bad odor, application of air freshener |
