시스템 특징
- It can control nutrient solution system from other firm (by replacing control box)
- It can transmit a text message by handphone when any malfunction takes place (option)
- It can measure substrate temperature of the crop
- LCD is installed to monitor control box
- Digital output, DC, AC 24-220V
- Communication by PC (long distance ; RS-485, short distance : RS-232)
- Saving of setting values, 100% operation of devices even if PC is shutdown
- Retaining original technology for hardware & software.

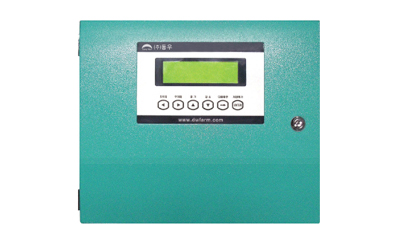

| Name of device | DONGWOO integrated environment control system | |
| Model | D-3700 | |
| Control sector | 1 sector(basic) ∼ 8 sectors(option) | |
| Method of control |
External weather station | Wind direction, wind velocity, light intensity, rain (Signal : 0 ∼ 20mA) |
| Inside the greenhouse (basic) |
Temperature(2 areas), humidity(2 areas), substrate temperature(1 area), CO2(1 area) | |
| Inside the greenhouse (option) |
Amount of substrate solution, pH/EC/humidity of substrate solution (Signal : 0 ∼ 20mA) |
|
| Digital output |
Environment control output |
DC, AC 24V ~ 220V (40 Output) |
| Nutrient solution control output |
DC, AC 24V ~ 220V (20 Output) | |
| Power source | Single-phase, AC220V/ 50-60Hz | |
- * Product is subject to change without prior notice to improve its quality or capacity.

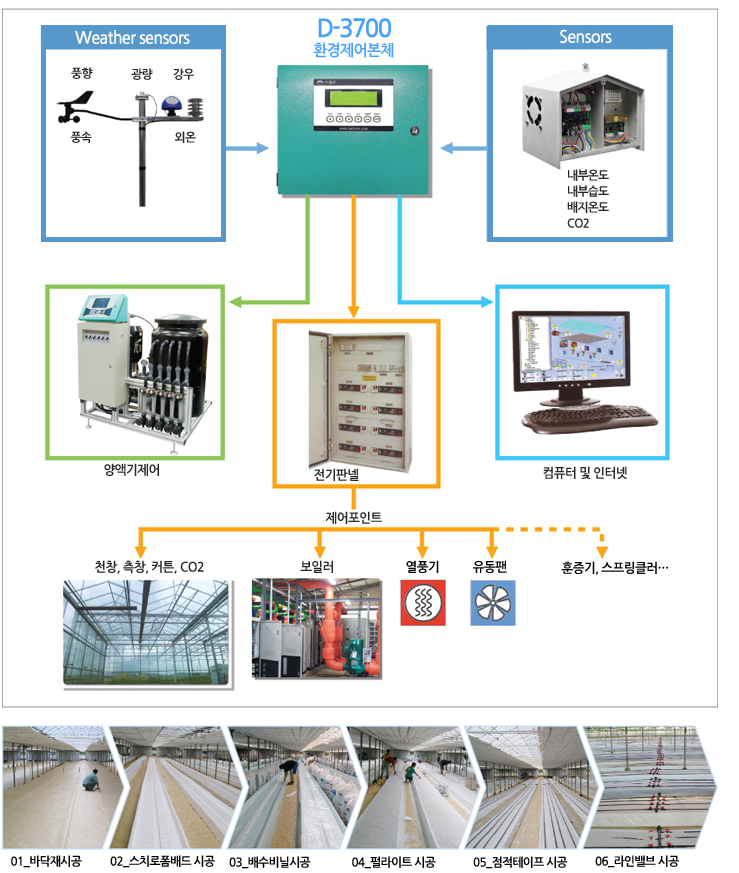

- 복합환경 자동제어시스템 설치구성도
