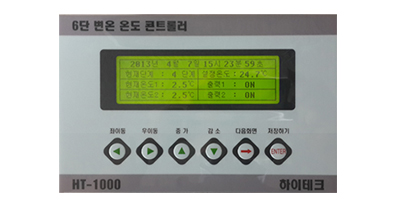

| Model | HT-1000 |
|---|---|
| Dealer | High Tech |
| Manufacturer | DONGWOO Co., Ltd. |
| Controller | Microprocessor (automatic control depending on the setting by user). |
| Analog Input | Temperature sensor 2 areas (Mini shelter) |
| Digital output | 2 areas(control of circulation pump, hot air blower) |
| Power source | AC220V / 60Hz |
| Features of the system |
|---|
| To be controlled by 6-steps of time/temperature setting |
| Control of circulation pump/3-way valve, hot air blower |
| Precise temperature setting & temperature sensing (setting by 0.1 degree) |
| Average temperature report per stage during past 30 days |
| Temperature sensor gives warning signal against high/low temperature |
| Time setting for increasing/decreasing temperature |
| On-the-spot output test can be made |
- 하이테크 HT-1500 사용자 설명서

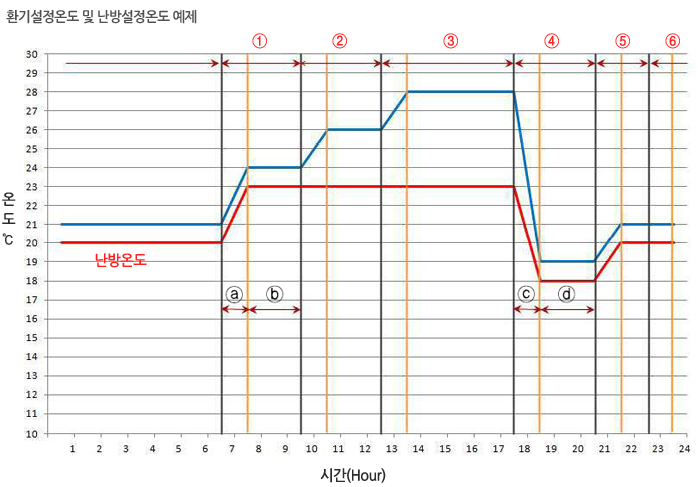

- [ Setting example to be reviewed by graph ]
- ① Setting for 1st area - setting temperature for ventilation : 24℃, setting temperature for heating : 23℃, 60 minutes for increasing time (starting to control during daytime)
- ② Setting for 2nd area - setting temperature for ventilation : 26℃, setting temperature for heating : 23℃, 60 minutes for increasing time (area to be controlled during daytime)
- ③ Setting for 3rd area -setting temperature for ventilation : 28℃, setting temperature for heating : 23℃, 60 minutes for increasing time (area to becontrolled during daytime)
- ④ Setting for 4th area -setting temperature for ventilation : 19℃, setting temperature for heating : 18℃, 60 minutes for decreasing time(area to be induced for generative growth)
- ⑤ Setting for 5th area -setting temperature for ventilation : 21℃, setting temperature for heating : 20℃, 60 minutes for increasing time(starting to control during nighttime)
- ⑥ Setting for 6th area -setting temperature for ventilation : 21℃, setting temperature for heating : 120℃, 60 minutes for decreasing time(area to be controlled during nighttime)
- ⓐ Setting temperature increasing area from previous area(6th area) to the 1st area(starting to control during daytime)
- ⓑ Setting temperature decreasing area from previous area(3rd area) to the 4th area(starting to control during nighttime)
- ⓒ Setting temperature maintaining for 4th area
- * Generally, increasing and decreasing time is set in between 30∼60 minutes.
- * 60 minutes of increasing time for 1℃ and 30 minutes of decreasing time for 1℃ may applicable to suit crop physiology.
